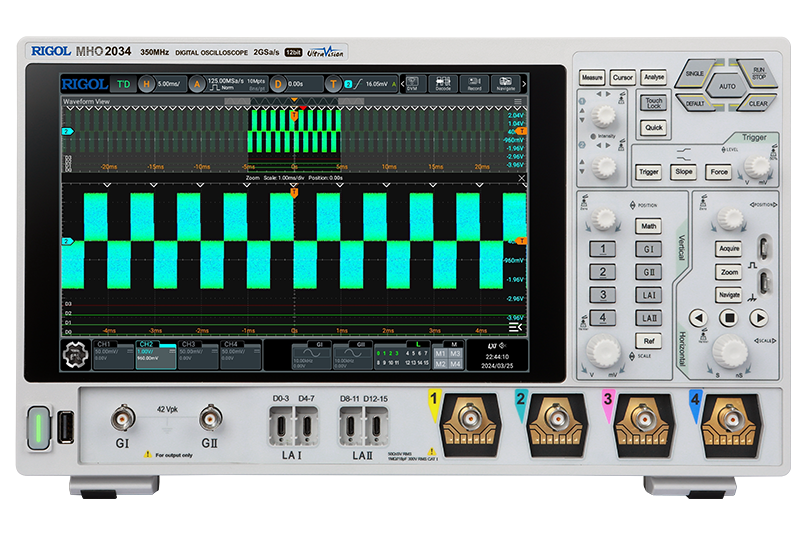

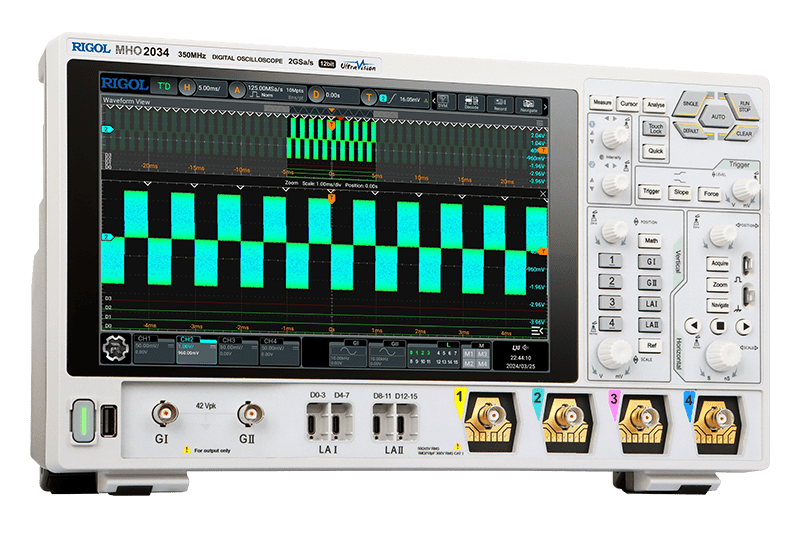

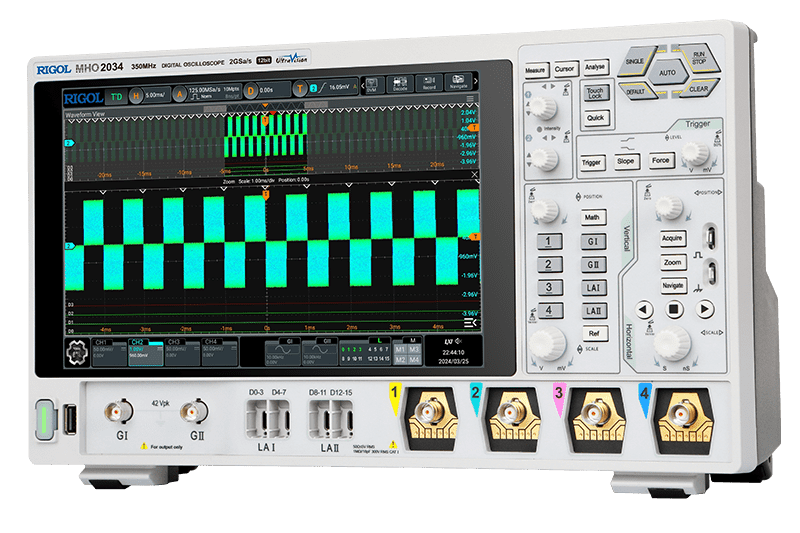

Digital Oscilloscope

MHO2000 Series

The MHO2000 series is a high-resolution, reliable, and cost-effective mixed-signal digital oscilloscope with up to 350 MHz bandwidth. It features a 12-bit ADC and integrates functions such as protocol analysis, logic analysis, and signal generation. Ideal for power, medical, and automotive electronics, the MHO2000 enables efficient, multi-dimensional testing and analysis.

Starting Price (Exclude Taxes)
-

350MHz

BANDWIDTH

2GSa/s

REAL-TIME SAMPLE RATE

4

ANALOG CHANNELSREAL-TIME

500Mpts

MAX. MEMORY DEPTH

1,000,000 wfms/s

WAVEFORM CAPTURE RATE

Ultra-high resolution capturing tiny details

The MHO2000 series features excellent 12-bit resolution with up to 4096 quantization levels, greatly improving measurement accuracy. Compared to 8-bit oscilloscopes, it delivers up to 16× detail, capturing subtle signal variations. With vertical sensitivity down to 200 μV/div, it’s ideal for power ripple or medical signal testing, ensuring precise analysis for innovation and reliability.

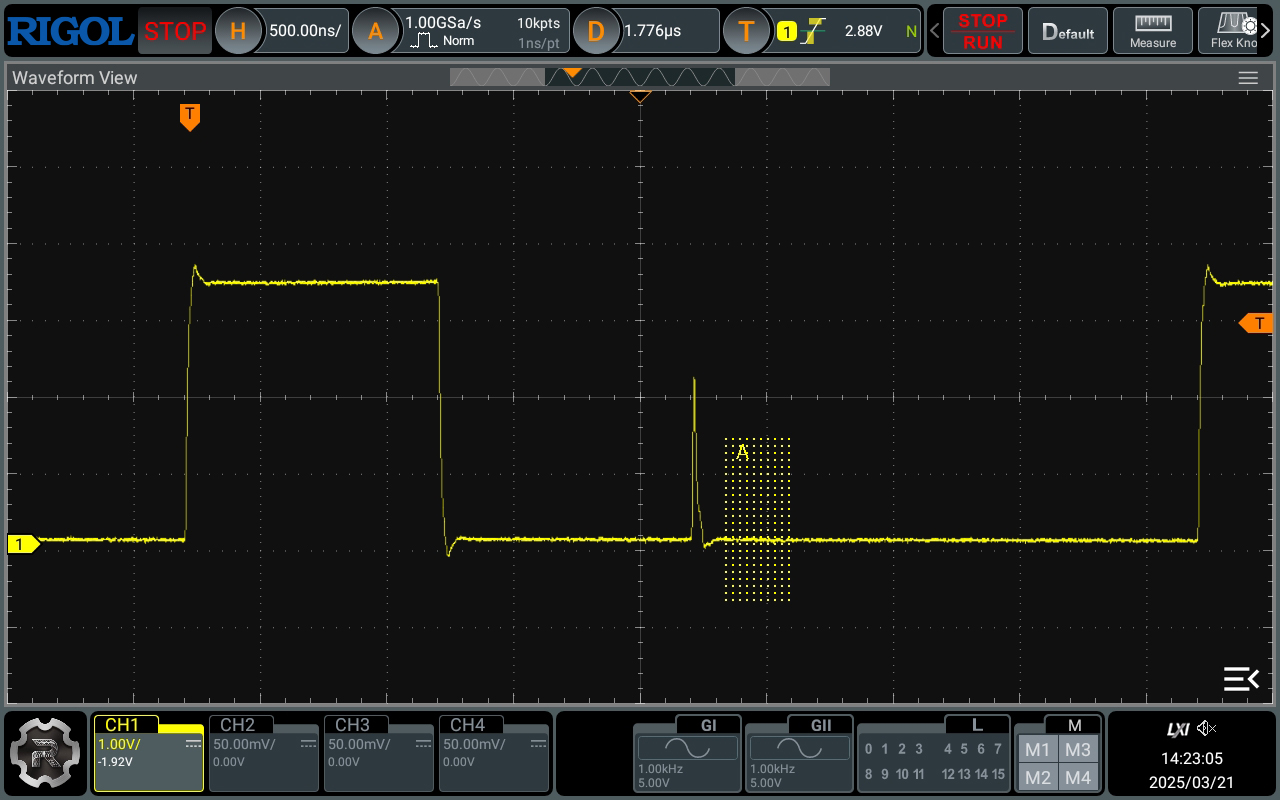

Versatile triggering and decoding for diverse industries

The MHO2000 series offers multiple trigger types—edge, interval, timeout, video, serial bus, and area trigger—for reliable capture of abnormal signals. It also supports I2C, SPI, CAN, CAN-FD, FlexRay, I2S, MIL-STD-1553B, SENT, and more, meeting bus testing needs across embedded, automotive, and computing industries.

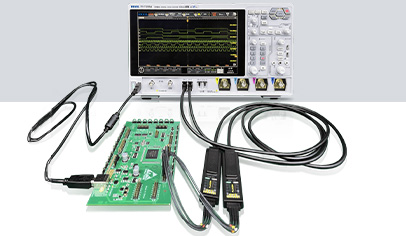

Standard digital channel, stable signal transmission

The MHO2000 series comes standard with digital channels and supports the PLA3204 logic probe for efficient analog and digital signal debugging. This setup enables deep digital analysis and precise capture of signal interactions in complex systems, ensuring high efficiency and accuracy in R&D, troubleshooting, and performance optimization to boost project success rates.

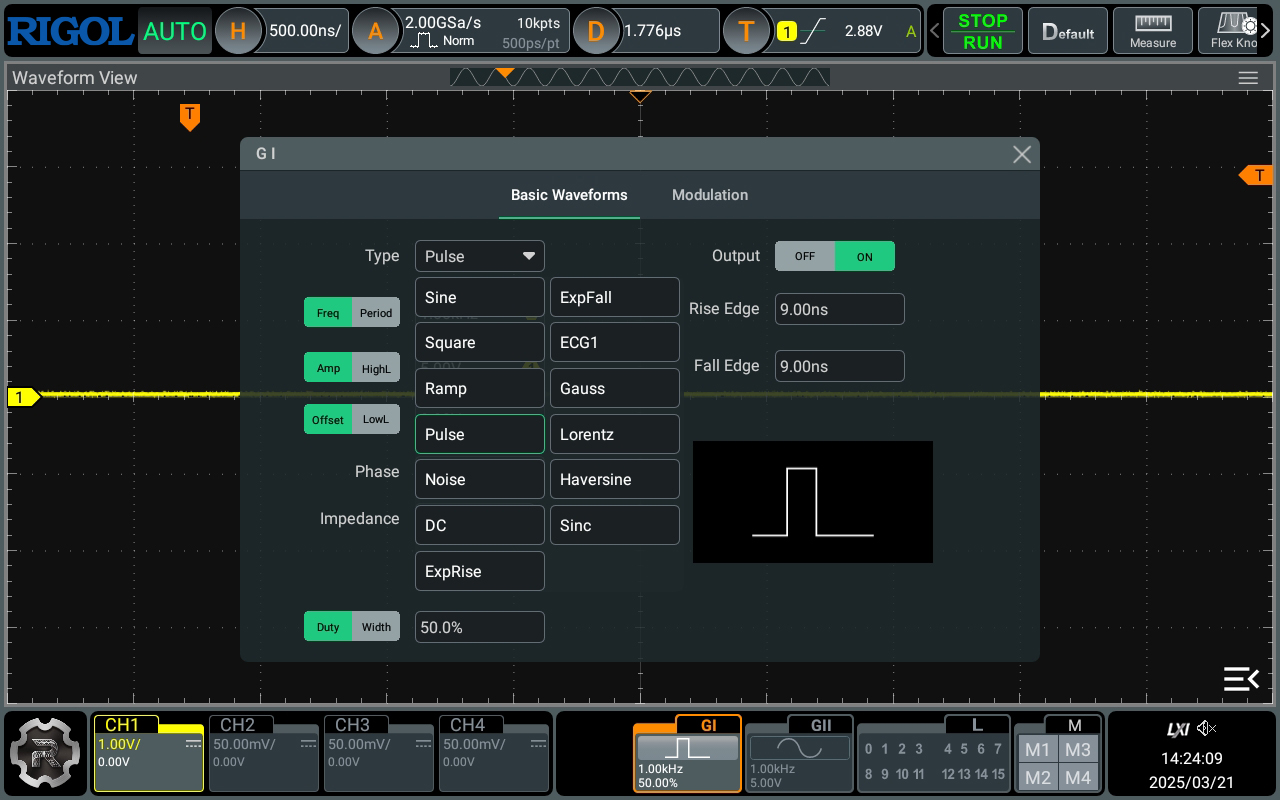

Built-in function generator for advanced analysis

The MHO2000 series high-resolution digital oscilloscope supports a built-in dual-channel signal generator with 16-bit resolution, providing waveform output up to 50MHz, including sine wave, square wave, triangle wave, pulse wave, noise, DC, and a variety of built-in arbitrary waves, which can be widely used in various scientific experiments and industrial control fields.

  • MODEL
    BANDWIDTH
    ANALOG CHANNELS
    REAL-TIME SAMPLE RATE
    MAX. MEMORY DEPTH
    WAVEFORM CAPTURE RATE
    DIGITAL CHANNELS
    BUILT-IN SIGNAL SOURCE
    PRICE (Exclude Taxes)
  • MHO2034
    350MHz
    4
    2GSa/s
    500Mpts
    1,000,000 wfms/s
    16(Probe opt.)
    50MHz, 2CH(opt.)
  • MHO2024
    200MHz
    4
    2GSa/s
    500Mpts
    1,000,000 wfms/s
    16(Probe opt.)
    50MHz, 2CH(opt.)
MHO2000 DATASHEETS
  • NAME
  • VERSION
  • RELEASE DATE
  • DOWNLOAD
  • MHO2000 Datasheets
    MHO2000 Datasheets
  • V1.0
  • 2025-05-08
  • PDF
MHO2000 USER GUIDE
  • NAME
  • VERSION
  • RELEASE DATE
  • DOWNLOAD
  • MHO2000 User Guide
    MHO2000 User Guide
  • v1.0
  • 2025-05-08
  • PDF
PASSIVE PROBE
MODEL
DESCRIPTION
PRICE (Exclude Taxes)
MANUAL
RP1018H
18kV 150MHzHigh voltage probe
€ 869
RP1300H
300MHzHigh voltage probe(2kV)
€ 249
RP6150A
1.5GHzPassive low resistance probe(500ohm)
€ 299
RP3500A
500MHzPassive high resistance probe
€ 180
CURRENT PROBE
MODEL
DESCRIPTION
PRICE (Exclude Taxes)
MANUAL
RP1006C
2MHz,500A
€ 4895
RP1005C
10MHz,150A
€ 4515
RP1004C
100MHz,30A
€ 4635
RP1003C
50MHz,30A
€ 3295
RP1002C
1MHz,70ADC
€ 1585
RP1001C
300KHz,100A DC
€ 829
PCA1500
2MHz, 500A Current Probe
€ 5695
PCA1150
Current probe:10MHz,150A
€ 5895
PCA2030
Current probe:100MHz,30A
€ 5995
PCA1030
Current probe:50MHz,30A
€ 4695
HIGH VOLTAGE DIFFERENTIAL PROBE
MODEL
DESCRIPTION
PRICE (Exclude Taxes)
MANUAL
PHA2150
200MHz, 1500V High Voltage Differential Probe
€ 1395
PHA1150
High voltage differential probe,DC-100MHz,1500V
€ 939
PHA0150
High voltage differential probe,DC-70MHz,1500V
€ 759
RP1100D
High Voltage Differential Probe,100MHz,3.5KV
€ 749
RP1050D
High Voltage Differential Probe,50MHz,3.5KV
€ 539
RP1025D
High Voltage Differential Probe,25MHz,700V
€ 449
Logic Analyzer Probes
MODEL
DESCRIPTION
PRICE (Exclude Taxes)
MANUAL
PLA3204
Quad-channel Logic Analyzer Probe
€ 179
FUNCTIONAL OPTIONS
MODEL
DESCRIPTION
PRICE
MHO2000-PWRA
Power Analyze option
€ 269
MHO2000-AUDIOA
I2S Audio Bus Trigger and Analysis Option
€ 269
MHO2000-AUTOA
CAN-FD, LIN Bus Trigger and Decode Option
€ 269
MHO2000-SENTA
SENT Trigger and Decode Option
€ 269
MHO2000-FLEXA
FlexRay Trigger and Decode Option
€ 269
MHO2000-AEROA
MIL-STD-1553 Bus Trigger and Decode Option
€ 269
MHO2000-AWG
Built-in Dual-Channel 50MHz Function Signal Generator Option
€ 399
MHO2000-BND
Package Option
€ 999
