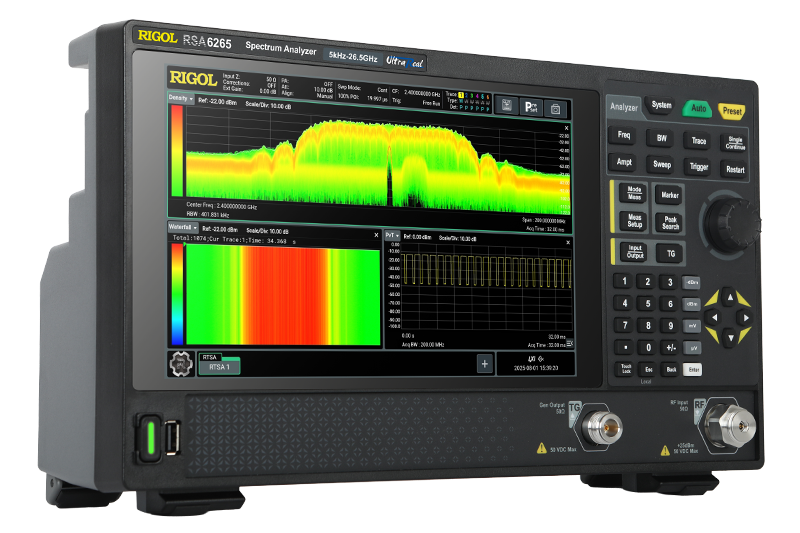

Real-time Spectrum Analyzer
The RSA6000 Series Real-Time Spectrum Analyzer is equipped with real-time analysis (RTSA) and swept analysis (GPSA) functions, and offers optional vector signal analysis application software (VSA), analog signal analysis application software (ADM), and EMI measurement application software (EMI), boasting excellent performance and specifications.
5 kHz ~ 26.5 GHz
1Hz~10MHz
-108dBc/Hz@10kHz
-163dBm
Yes

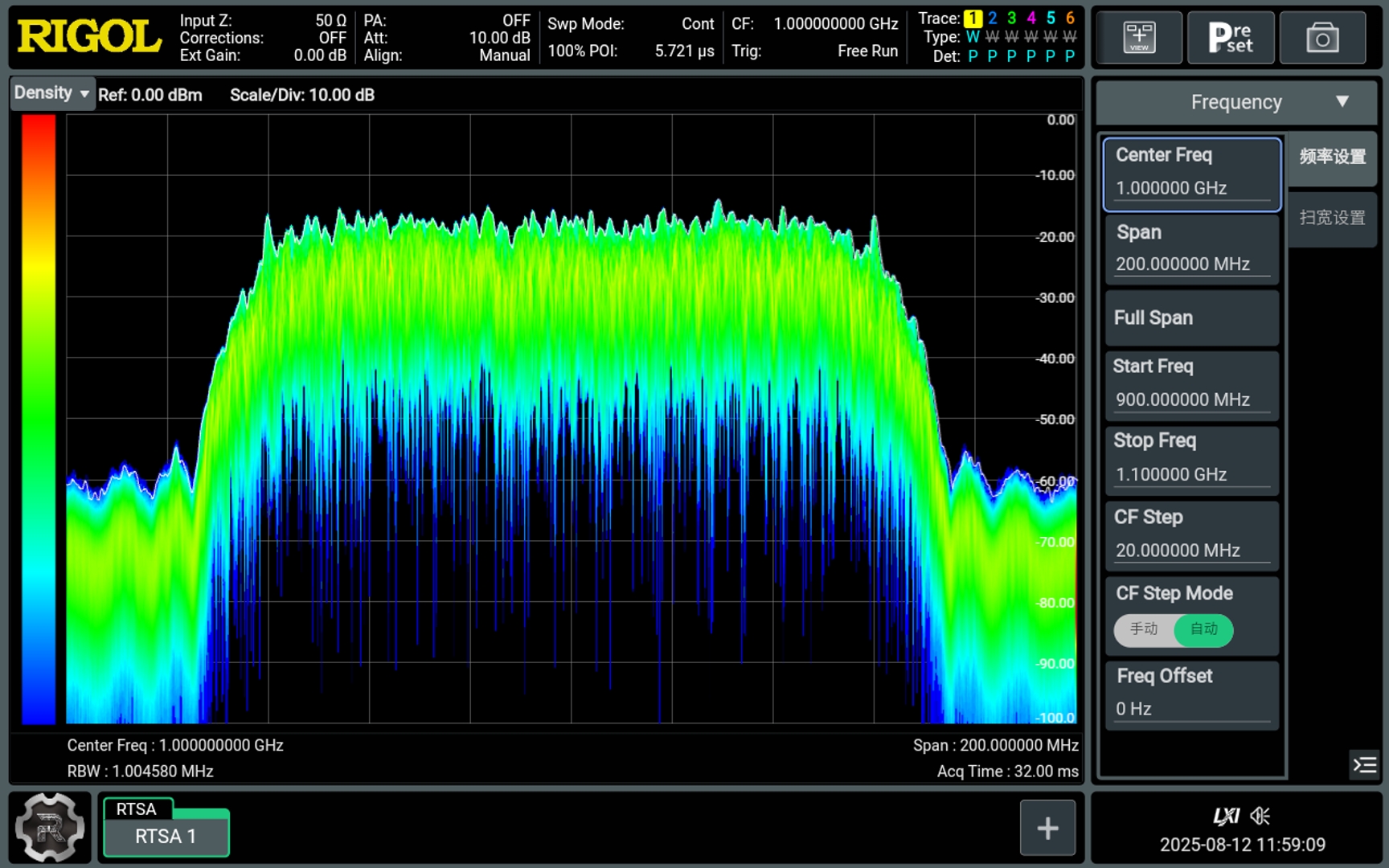

Class-leading 200MHz real-time spectrum analysis
It enables signal capture in complex environments, effortlessly handling challenges such as multiple signals and transient interference. This allows for the rapid identification of abnormal signals, enhancing R&D and troubleshooting efficiency.

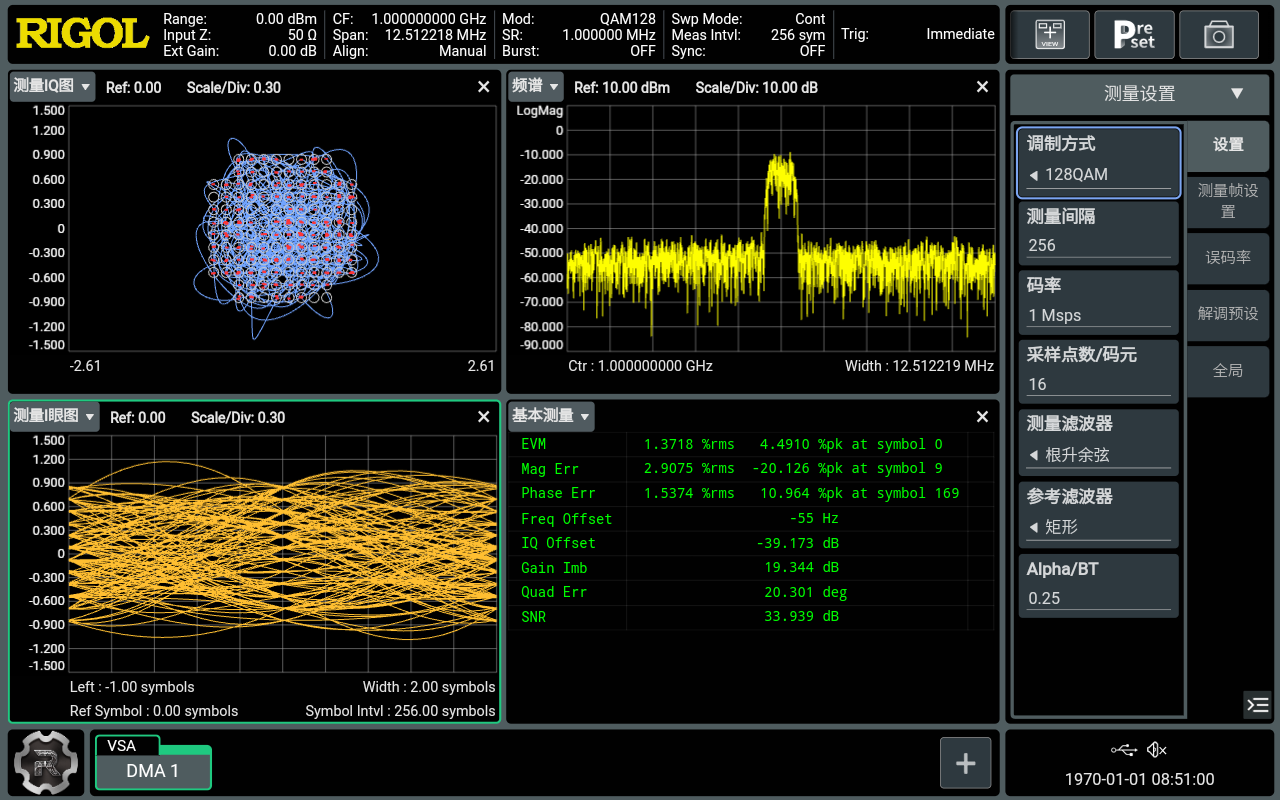

Newly upgraded 200 MHz Demodulation Analysis Bandwidth
200 MHz vector demodulation bandwidth: Effortlessly handles in-depth analysis and performance evaluation of various broadband communication signals.

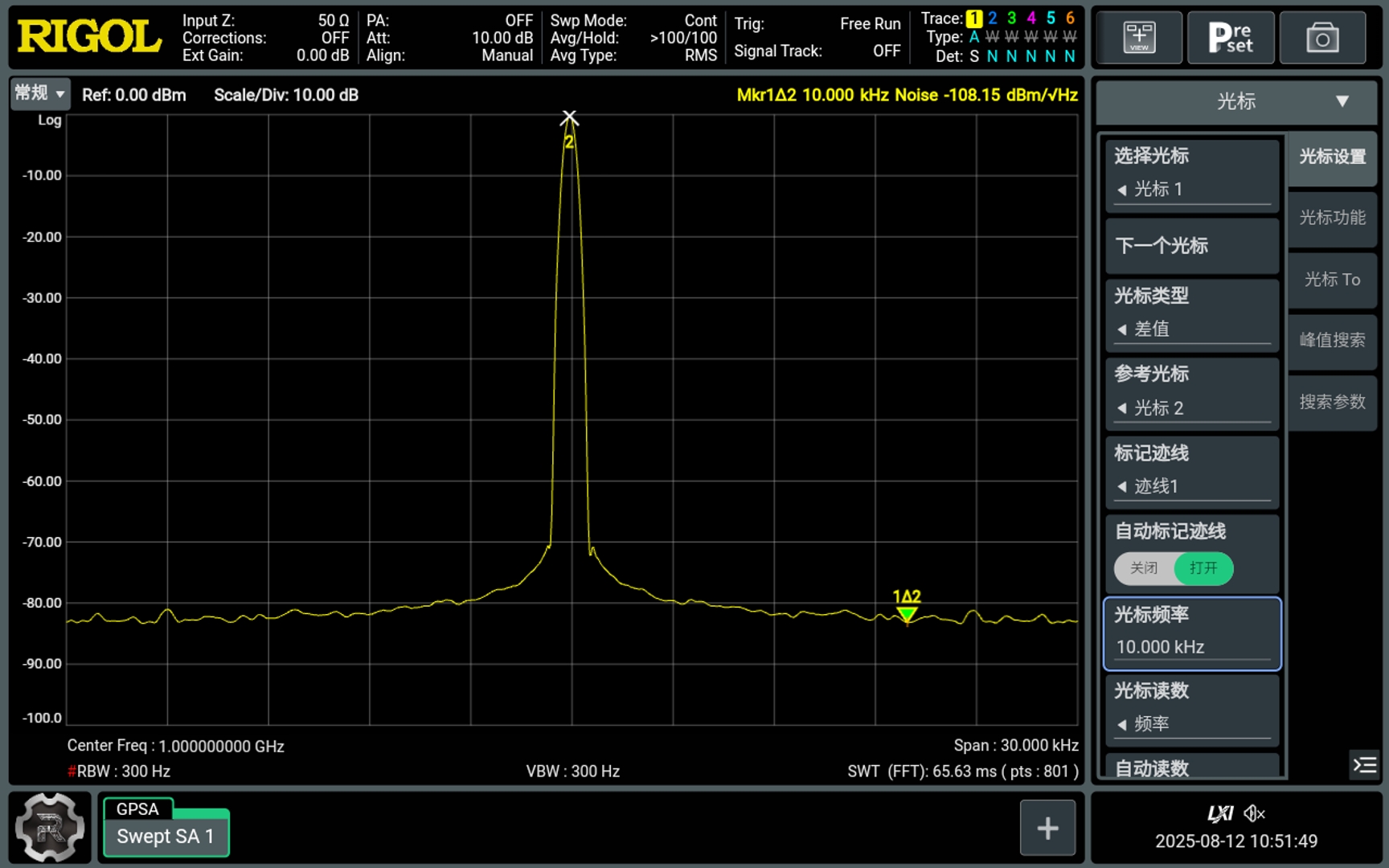

Phase Noise -108dBc/Hz@1GHz，10kHz offset
Excellent phase noise performance provides a pure local oscillator (LO) for demanding tests, ensuring accurate and reliable measurement results.

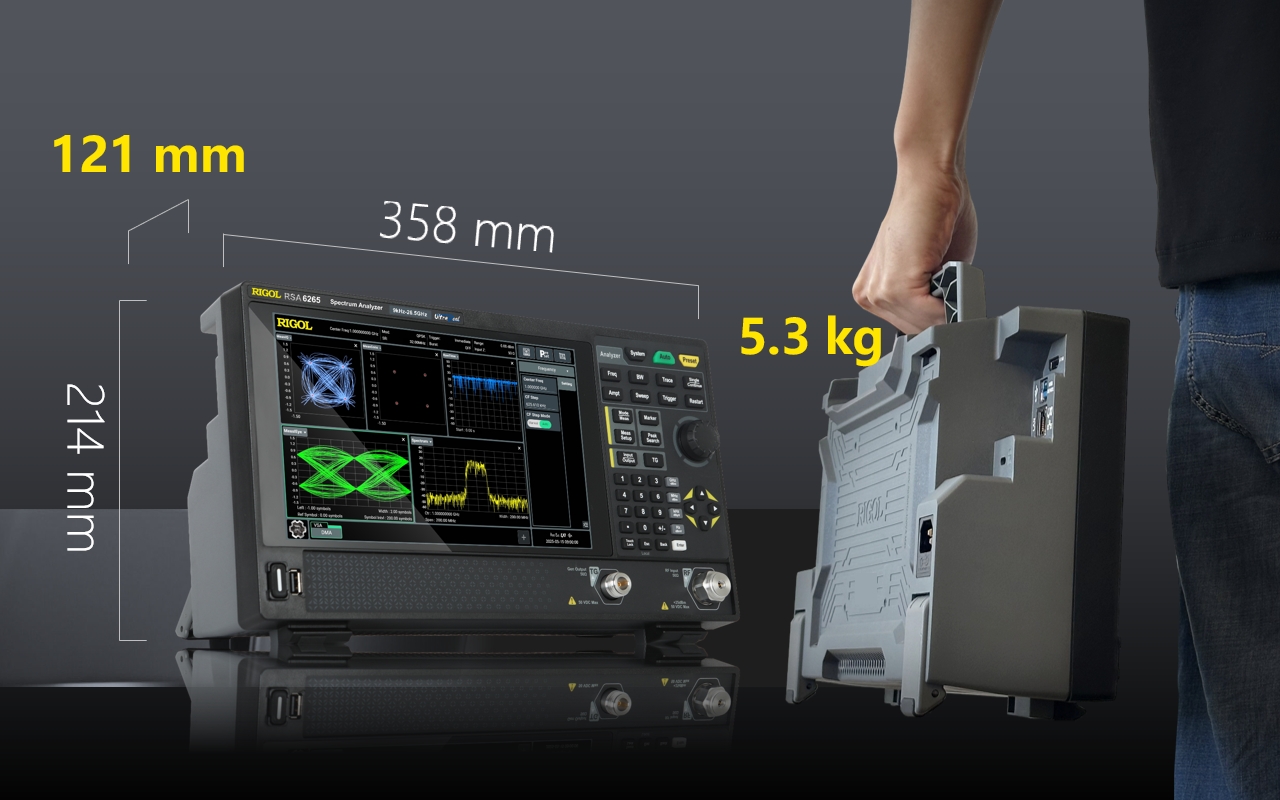

Compact size, portable design
The compact and portable design easily adapts to crowded test benches and complex field environments, making high-performance testing possible anywhere.

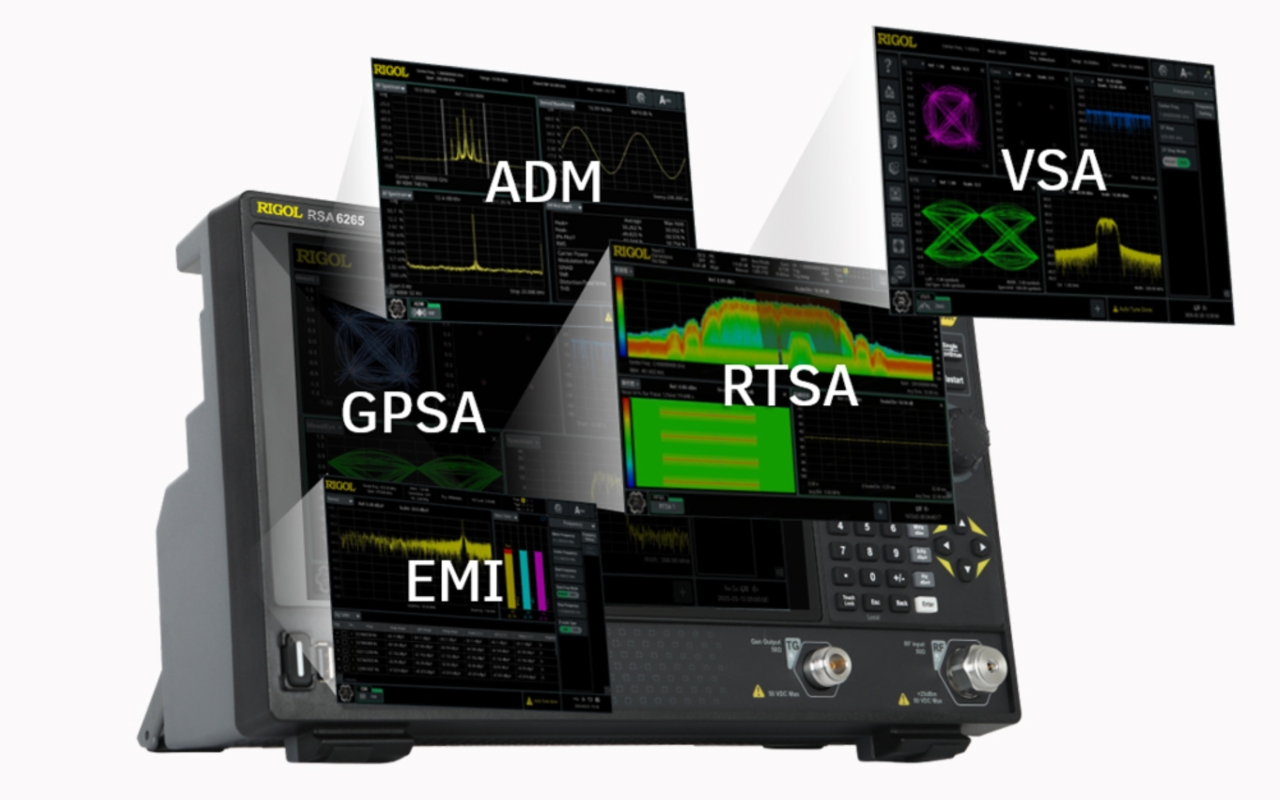

5-in-1 Multifunctionality
One instrument with five core functions highly integrated. It significantly saves test space and investment costs, comprehensively enhancing overall test value.

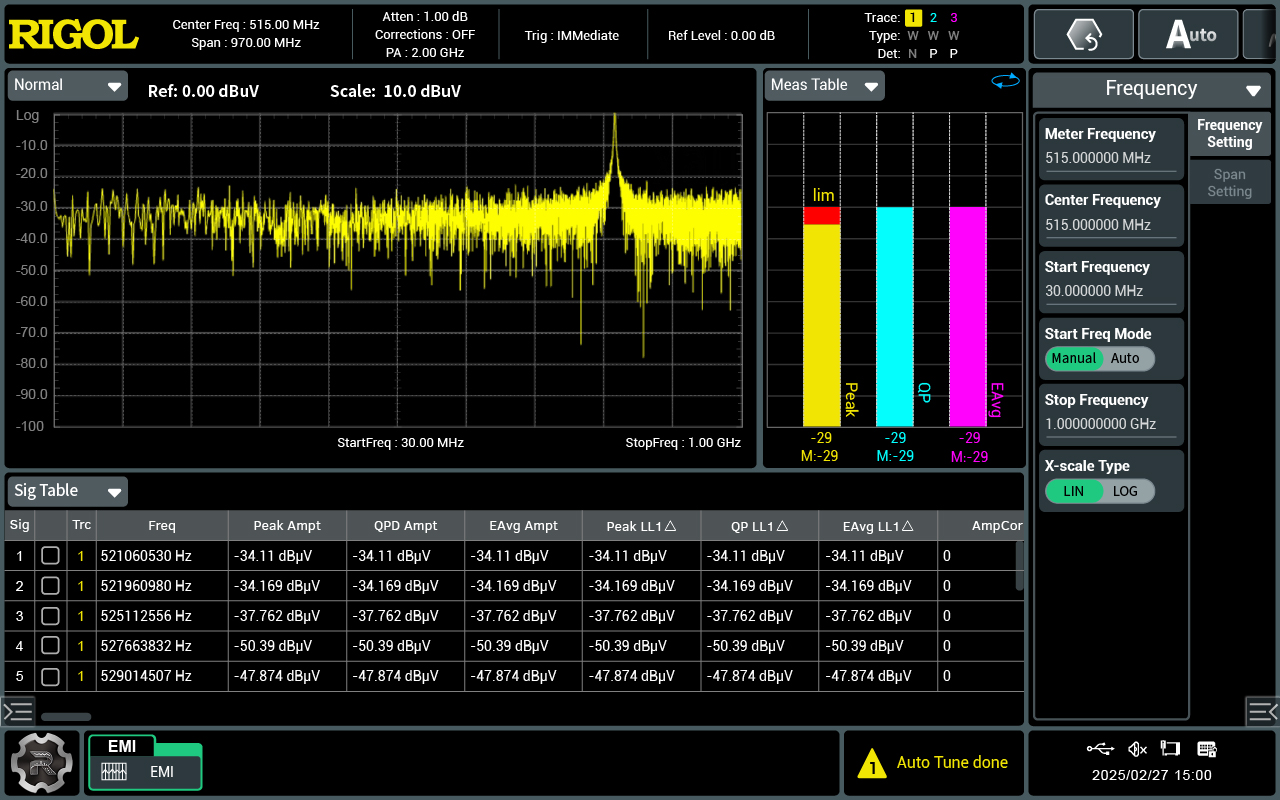

Perform Conducted/Radiated Pre-compliance with Built-in EMI
The built-in EMI pre-compliance application, combined with CISPR-compliant filters, allows for conducted and radiated pre-testing of products to identify and mitigate disturbance sources, accelerating time-to-market.

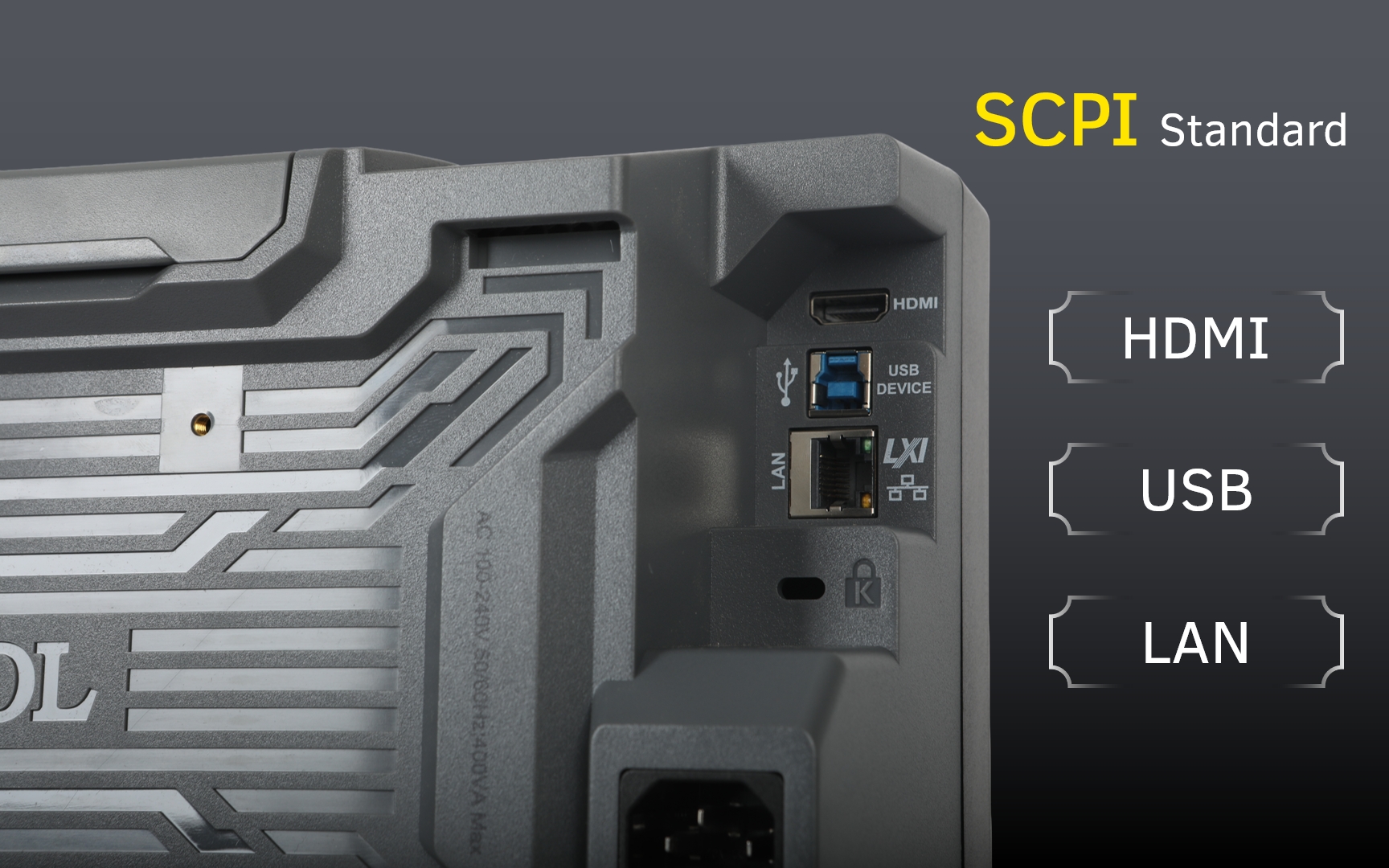

Multiple Interfaces and Standard SCPI Command Support
Integrated with USB, LAN, and HDMI interfaces. It supports standard SCPI commands to easily build automated test systems and accelerate your product development process.
UI Design Optimized for Touch Operation
The brand-new touch UI delivers a smooth, tablet-like experience, making complex spectrum measurements intuitive, efficient, and effortless.
-
MODELFREQUENCY RANGEDESCRIPTIONPHASE NOISEDNALTRACKING SOURCEPRICE (Exclude Taxes)
-
RSA62655 kHz ~ 26.5 GHz1Hz~10MHz-108dBc/Hz@10kHz-163dBmYes
-
RSA61405 kHz ~ 14 GHz1Hz~10MHz-108dBc/Hz@10kHz-163dBmYes
-
RSA60855 kHz ~ 8.5 GHz1Hz~10MHz-108dBc/Hz@10kHz-163dBmYes
- Name
- Version
- Release Date
- Download
-
RSA6000 DatasheetRSA6000 Datasheet - DSD27101-1110
- 2025-09-15
-
PDF
- NAME
- VERSION
- RELEASE DATE
- DOWNLOAD
-
RSA6000 Quick GuideRSA6000 Quick Guide
- QGD27100-1110
- 2025-09-15
-
PDF
- NAME
- VERSION
- RELEASE DATE
- DOWNLOAD
-
RSA6000 Performance VerificationRSA6000 Performance Verification
- PVD27100-1110
- 2025-09-15
-
PDF
